Products and Specifications
TYPE 4

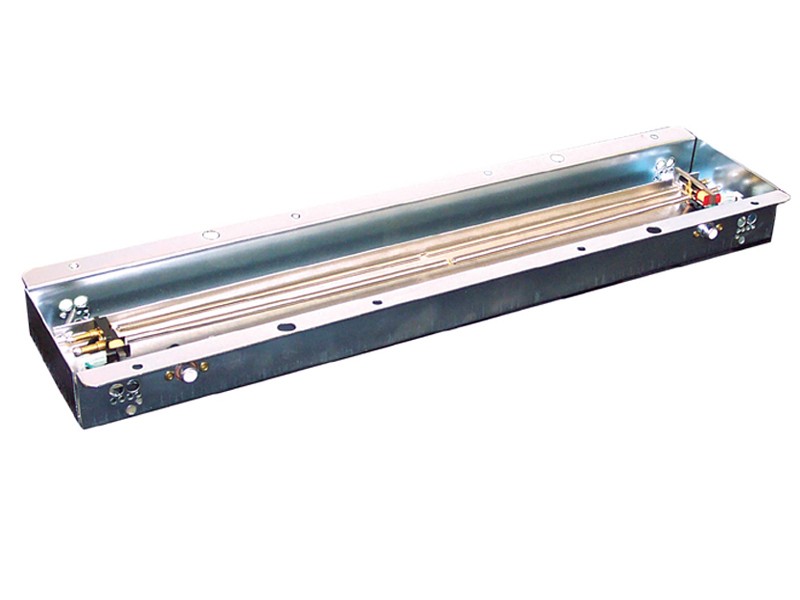

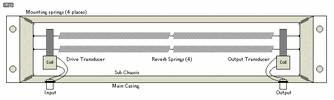

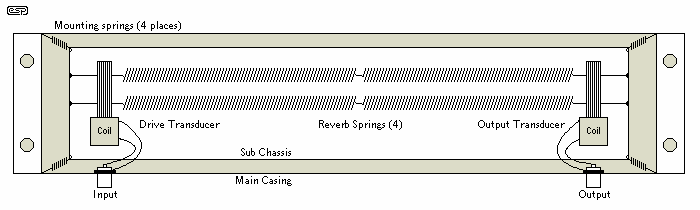

The industry standard for years, the Type 4 is still manufactured today using Hammonds original design. Four counter wound and coupled springs deliver superior mechanical performance and the classic sound that helped make the Fender Twin Reverb Amps famous. Outer channel dimensions are 16.75 Length x 4.375 Width x 1.313 Height.
TYPE 8
Designed for applications in which the overall sound quality is important and a compact package is required. Small in size, this three spring reverb approaches the rich textural quality of our larger reverb units. Outer channel dimensions are 9.25 Length x 3.375 Width x 1.313 Height.
TYPE 9
Six springs, counter wound, coupled and placed in parallel, combine to create Sound Enhancements fullest, richest reverb effect throughout the full range of musical sound. Ideally suited for keyboard, sound reinforcement and pedal steel applications. Outer channel dimensions are 16.75 Length x 4.375 Width x 1.313 Height.
TYPE 1
A small low cost two spring unit designed for application when price is a major factor. Ideally suited for practice amps. Outer channel dimensions are 9.25 Length x 3.375 Width x 1.313 Height.
(Type 1 is not available at TAD, we recommend to upgrade with equivalent Type 8 model)
PART NUMBERING SPECIFICATIONS FOR TYPE 4
EXAMPLE: 4EB3C1B
DIGIT #1 - REVERB TYPE
1 for Type 1 or 4 for Type 4
DIGIT #2 - INPUT IMPEDANCE
A = 8 Ohm
B = 150 Ohm
C = 200 Ohm
D = 250 Ohm
E = 600 Ohm
F = 1475 Ohm
DIGIT #3 - OUTPUT IMPEDANCE
A = 500 Ohm
B = 2250 Ohm
C = 10000 Ohm
DIGIT #4 - DECAY TIME
1 = Short (1.2 to 2.0 sec)
2 = Medium (1.75 to 3.0 sec)
3 = Long (2.75 to 4.0 sec)
DIGIT #5 - CONNECTORS
A = Input Grounded / Output Grounded
B = Input Grounded / Output Insulated
C = Input Insulated / Output Grounded
D = Input Insulated / Output Insulated
E = No Outer Channel
DIGIT #6 - LOCKING DEVICES
1 = No Lock
DIGIT #7 - MOUNTING PLANE
A = Horizontal Open Side Up
B = Horizontal Open Side Down
C = Vertical Connectors Up
D = Vertical Connectors Down
E = On End Input Up
F = On End Output Up
PART NUMBERING SPECIFICATIONS FOR TYPE 8 & TYPE 9
EXAMPLE: 8EB2C1B
DIGIT #1 - REVERB TYPE
8 for Type 8 or 9 for Type 9
DIGIT #2 - INPUT IMPEDANCE
A = 10 Ohm
B = 190 Ohm
C = 240 Ohm
D = 310 Ohm
E = 800 Ohm
F = 1925 Ohm
DIGIT #3 - OUTPUT IMPEDANCE
A = 600 Ohm
B = 2575 Ohm
C = 12000 Ohm
DIGIT #4 - DECAY TIME
1 = Short (1.2 to 2.0 sec)
2 = Medium (1.75 to 3.0 sec)
3 = Long (2.75 to 4.0 sec)
DIGIT #5 - CONNECTORS
A = Input Grounded / Output Grounded
B = Input Grounded / Output Insulated
C = Input Insulated / Output Grounded
D = Input Insulated / Output Insulated
E = No Outer Channel
DIGIT #6 - LOCKING DEVICES
1 = No Lock
DIGIT #7 - MOUNTING PLANE
A = Horizontal Open Side Up
B = Horizontal Open Side Down
C = Vertical Connectors Up
D = Vertical Connectors Down
E = On End Input Up
F = On End Output Up
